Heating Jackets are used to raise or maintain elevated temperatures of the contents in reaction vessels, storage tanks, tankers and process equipments in industries. Heating Jackets find application in chemical and pharmaceutical industry to heat viscous fluids in cement industry for hopper heating to remove moisture in the flue gases, in packaging industry for free flow of gums and in metallurgical industry for annealing of metals & similar applications.
This flexible electric heater provides heat from the external surface of the device to be heated. Catering to a wide temperature range from 100℃ to 800℃.They eliminate high investment and operating costs associated with steam, oil, fire wood & conventional electric heating.
Construction

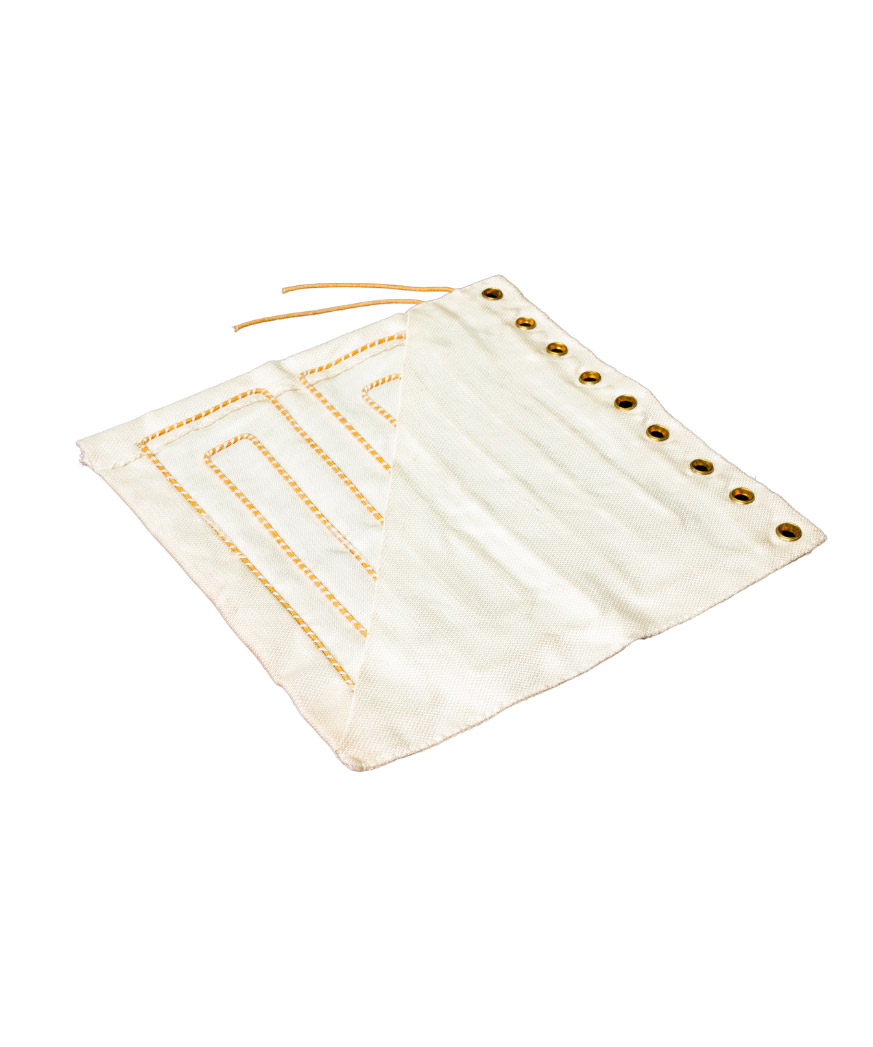

Thermo heating jackets comprise of flexible heating elements, distributed very uniformly on to a fibreglass or quartz cloth carrier. The fibreglass or quartz cloth carrier is tailored to the shape of the vessel to be heated. Eye-lets and laces provided on the panels, ensure a snug fit of heater on the surface being heated, avoiding any air gaps. The heating elements terminate on cold leads, which are connected to the power supply.
Close and evenly distributed heating element ensures effective and uniform heating.
Highly Efficient
Heat is applied on the surface from where heat loss occurs resulting in minimal heat loss.
Easy maintenance
Being an external heating system, maintenance is possible without the need for costly, disturbing shutdowns.
Precise Temperature Control
Thermostatic controls associated with heaters enable very precise temperature control with minimal thermal lag.
Adaptability
The high flexibility of the carrier material enables the heaters to fit snug on complicated shapes and bends and hence suited to all shapes and sizes.
Long Life
The high flexibility also ensures good heating element contact resulting in lower element temperatures and hence long life.
Custom-built
We also offer custom designs of a product to suit individual requirements. We can design for various dimensions, heat loads and voltages & incorporating cutouts to accommodate any shape and size.
Specifications
Operating Temperature (Max.)
Fibre glass Jackets – 400° C,Quartz Jackets – 800° C, PTFE Jackets – 150° C – 200° C
Operating Voltage
230V single phase or 440V three phase.
Heat Load
Upto 6KW/m2 max.
# Thermopads reserves the right to modify the specifications in line with future improvements, updated standards or updated certifications
