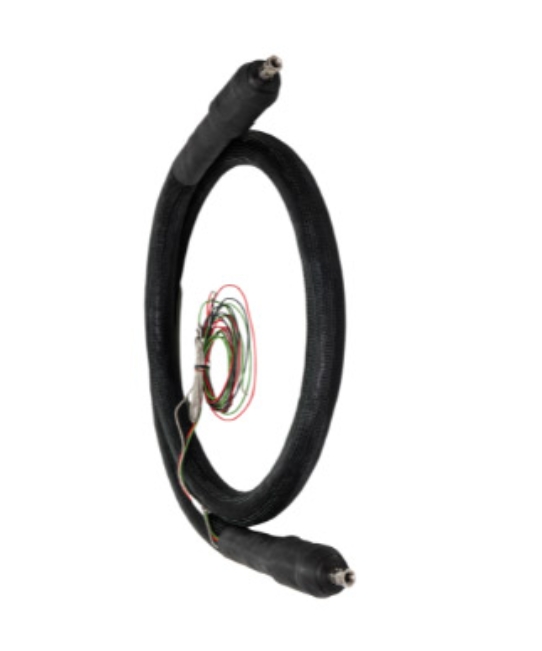

Hot Melt Hose

Hot Melt Hose

Hot Melt Hoses are used to feed the hot melt from the basic appliance to the applicator system, ensuring that the properties of the adhesive are preserved. The hot melt hoses are designed to last longer and guarantee a constant temperature over the full length to remain char free and prevent changes in the glue viscosity. The hot melt hoses are very flexible, can be laid out at will and serve to connect movable appliances systems. The Temperature should be controlled with temperature controller.
Optionally a bimetal is installed, which shuts off the energy supply to the heater when the maximum permissible temperature is reached. This bimetal may then be considered as a safety function and is used exclusively as a safety function.
The hot melt hose is usually the link between the hot-glue system and the application head or the handgun and is thus part of a machine.

Technical Data Sheet

Features
Compliance Heating Cable used in the Hot Melt Hose meets all test requirements as per VDE / UL Standards.
Approvals Heating Wires used in the Hot Melt Hose is certified by VDE & UL.
Flexibility Constructed with silicon sponge and braided outer jacket, hence very flexible.
Precise Temperature Control Inbuilt temperature sensor (RTD / Thermocouple / Temperature switch) provided with suitable external connection or precise temperature control.
Efficient Heat reflective foil on the heating cable and process tube ensures efficient heat transfer.
Ready to use Prefabricated with sample line and heating system incorporated, is ready to use.
Easy to install No need of any fabrication and fixing, ready to use with required connectors and end connections. Therfore no need for any special tools, it is easy to install.
Custom built We also offer custom designs of a product to suit individual requirements. We can design for various dimensions, heat loads and voltages

Specification
Item Description Hot Melt Hose
Process Tube SS Braided PTFE.
Process Tube Size Up to 1/2“ OD.
Heating Element Constant watt type (Series/ Parallel).
Thermal Insulation Silicon Foam & Polyurethane Foam.
Outer Jacket Nylon Braided & Corrugated Flexible PA Conduit.
Operating Voltage 230V / 110V.
Maximum Wattage Up to 200W/m.
Maximum Operating Temperature 200oC
Temperature Sensor built RTD / Thermocouple / Thermostat.
Process connection Connector coupling / Flanged /
as per customer requirement.
Power / Control Connection 2M of lead cable (3Wire) for both power and control.

# Thermopads reserves the right to modify the specifications in line with future improvements, updated standards or updated certifications
