Thermo Mineral Insulated cables (TMIC) are often used for temperature maintenance of piping, tanks and also for freeze protection applications. The Thermo Mineral insulated cable can also be used as power cable for High temperature applications. The products are series circuit constant watt heaters These cables are robust, fire-resistant, and capable of withstanding extreme environmental conditions, which are essential for heating applications in industrial, commercial, and residential settings.
Construction:

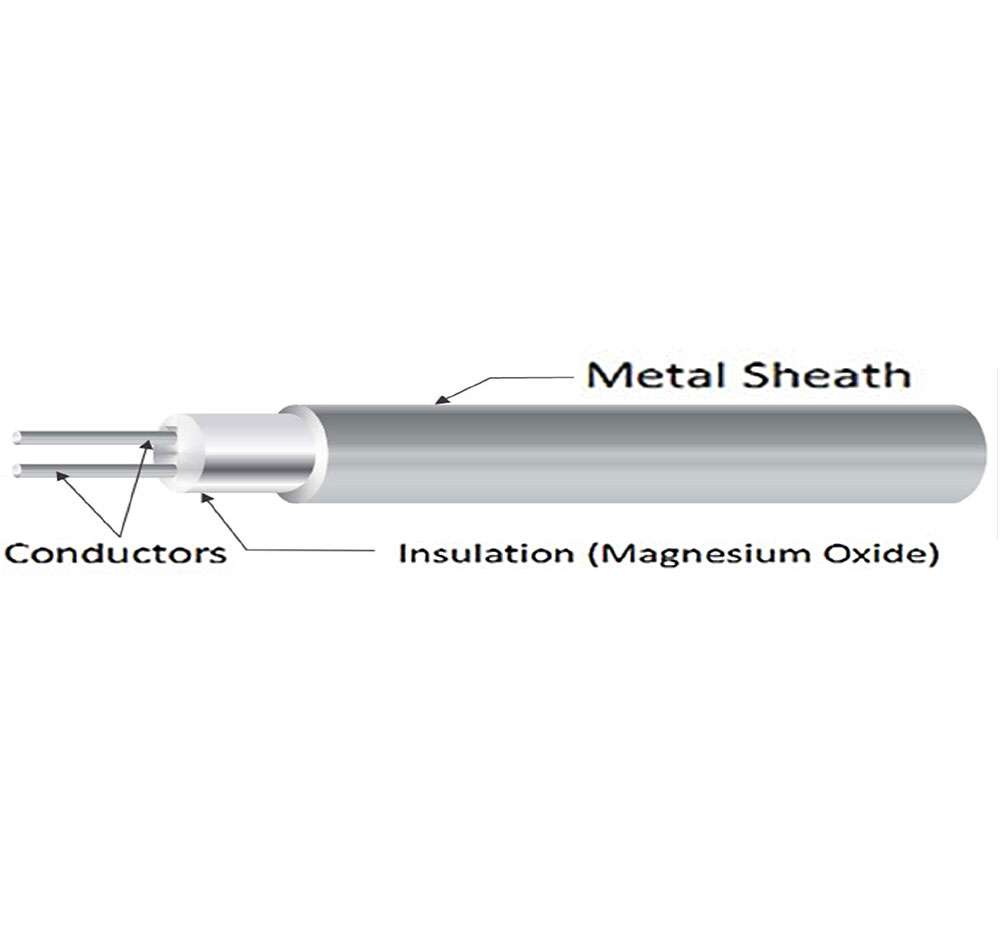

The Thermo Mineral insulated cables are made up of a metal conductor or conductors embedded in an inorganic insulant of compacted ceramic, typically, magnesium oxide powder inside a metal sheath. The inorganic nature of the construction enables the cables to operate for long periods at high temperatures or in extremely harsh environments e.g. petrochemical, reactor vessels, automotive and other applications where the integrity of the cable is most important.
Outer Metallic sheath makes it robust and suited to hostile conditions.
Fire Resistance
The magnesium oxide (MgO) insulation in TMIC cables is non-combustible, providing a high level of fire safety.
Custom built
We also offer custom designs of a product to suit individual requirements. We can design for various dimensions and voltages
Ranges:
Depending on the application and site conditions (viz. temperature, weather conditions, chemical environment), we can offer options of various insulating materials for TMIC to match your individual requirements.
Heating cables and units with copper sheath typically up to 200°C.
Heating cables and units with cupronickel sheath typically up to 400°C.
Heating cables and units with stainless steel and nickel alloys sheath typically up to 600°C.
Specifications:
Maximum Rated Voltage
600Vac for assembled unit & 750Vac for cold lead cables.
Minimum Bending Radius
Minimum Six times the cable cross sectional diameter.
