Pre Insulated Tubes

Pre Insulated Tubes

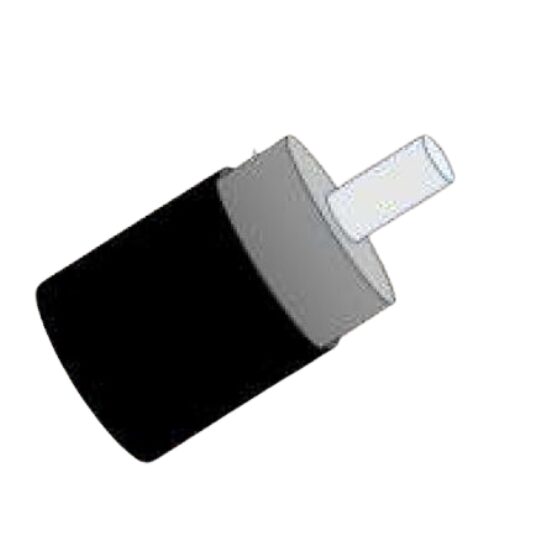

The pre-insulated tube is used to transport high temperature steam or condensate samples from its source to destination. On most occasions this is used to provide personnel safety from high temperature surfaces or to prevent sample temperature loss during transport. Used for steam and condensate transportation
The most popular application is however to transport in stem heating or stem tracing applications. These pre insulated tubes are used to transport steam from source which may be the steam manifold to the user point or equipment to be heated. The same product can also be used for transporting condensate from the return point to the condensate manifolds.

Technical Data Sheet

Features
Sturdy Robust Outer jacket material of UV resistant Extruded FRLS PVC or TPU.
Reliability Robust & Environment specific outer jacket material
Custom built We also offer custom designs of a product to suit individual requirements.

Specifications
Process Tube Welded SS316L, Seamless SS316L, Copper
Process Tube Size 1/4th to 3/4th OD, WT 0.035” to 0.049”
Thermal Insulation Non – hygroscopic Fiber glass

# Thermopads reserves the right to modify the specifications in line with future improvements, updated standards or updated certifications
